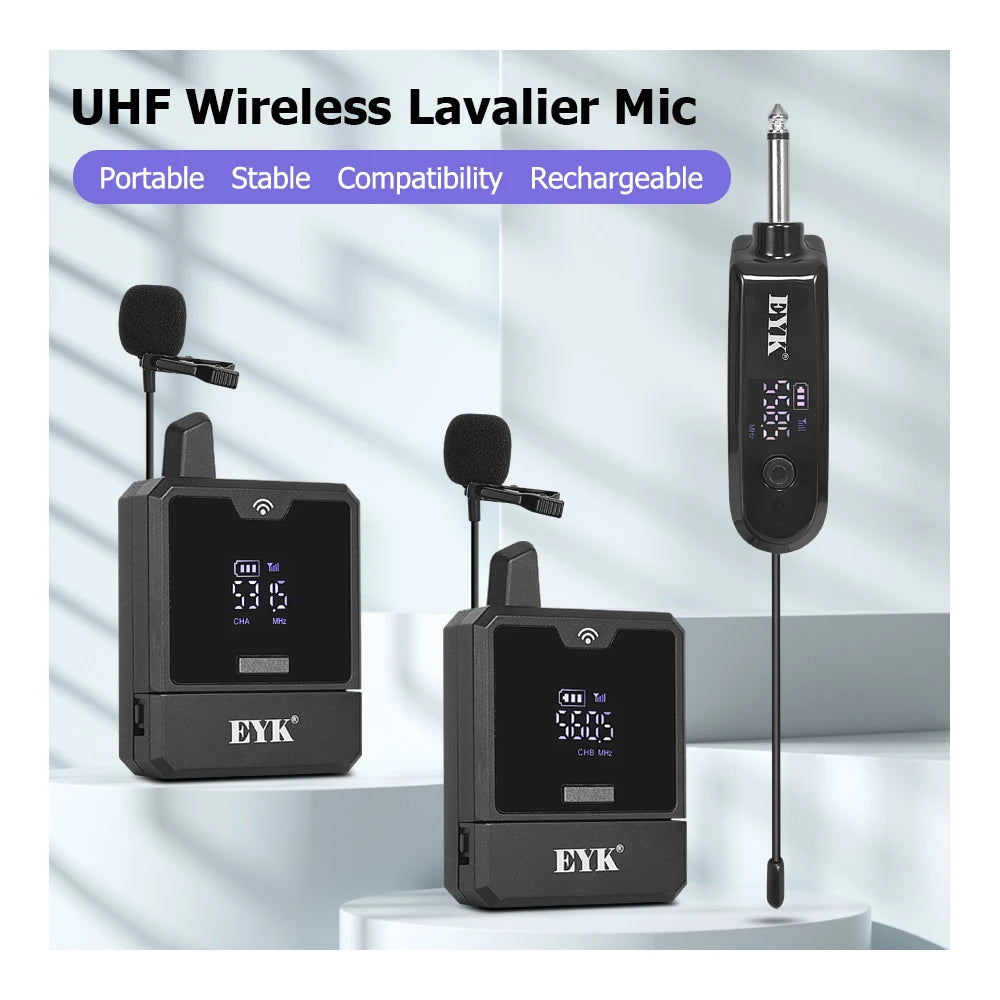

Key Point:

1. UHF 520-580MHz , 30 selectable frequencies for interference-free performance.
2. Rechargeable receiver with lithium battery（1200mAh）, Rechargeable Bodypack Transmitter with lithium battery（600mAh）Can be used continuously for about 4 hours
4. Receiver has 6.35mm (1/4") output and a 3.5mm adapter as gift.

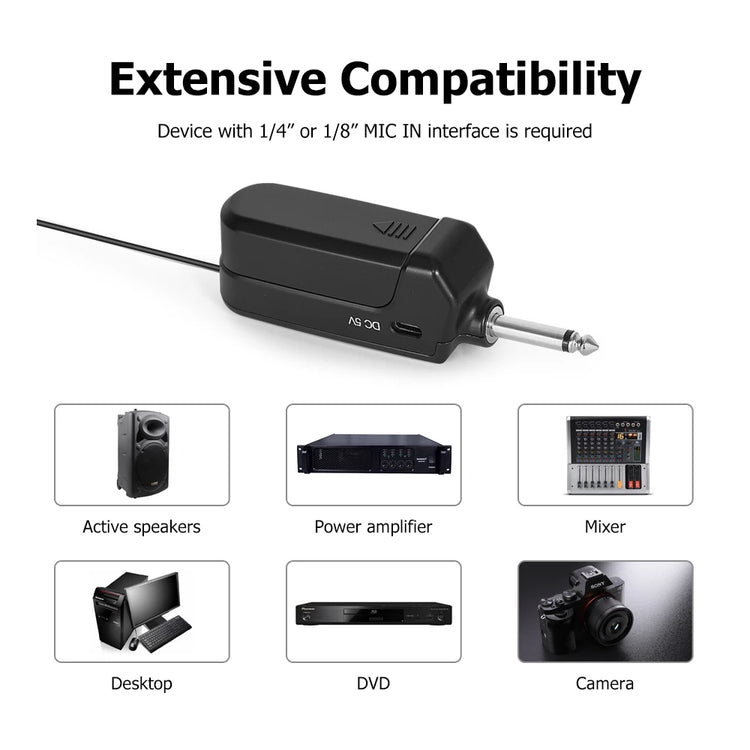

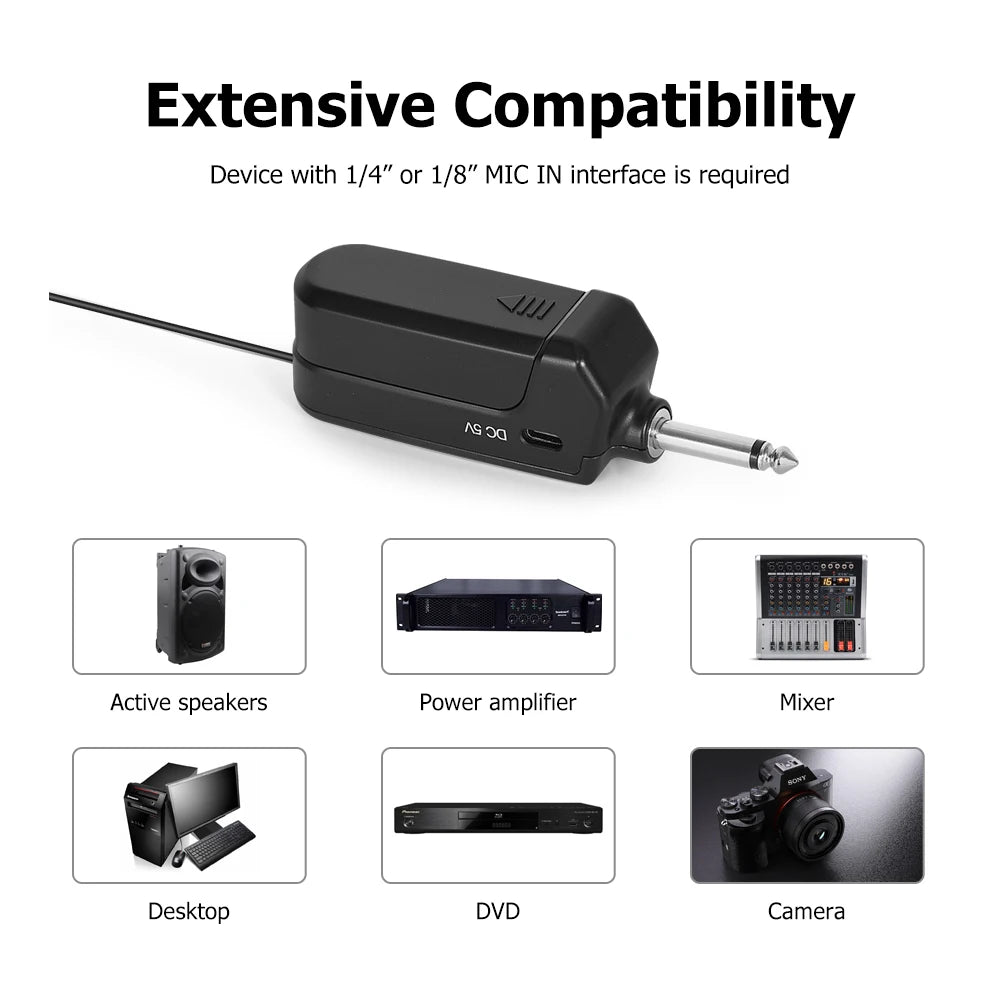

5. Extensive Compatibility：PA, mixers, speakers, amplifiers and karaoke machines with 6.35mm (1/4") mic input, iPhone or Android smartphones, tablet, laptops with the 3.5mm adapter.

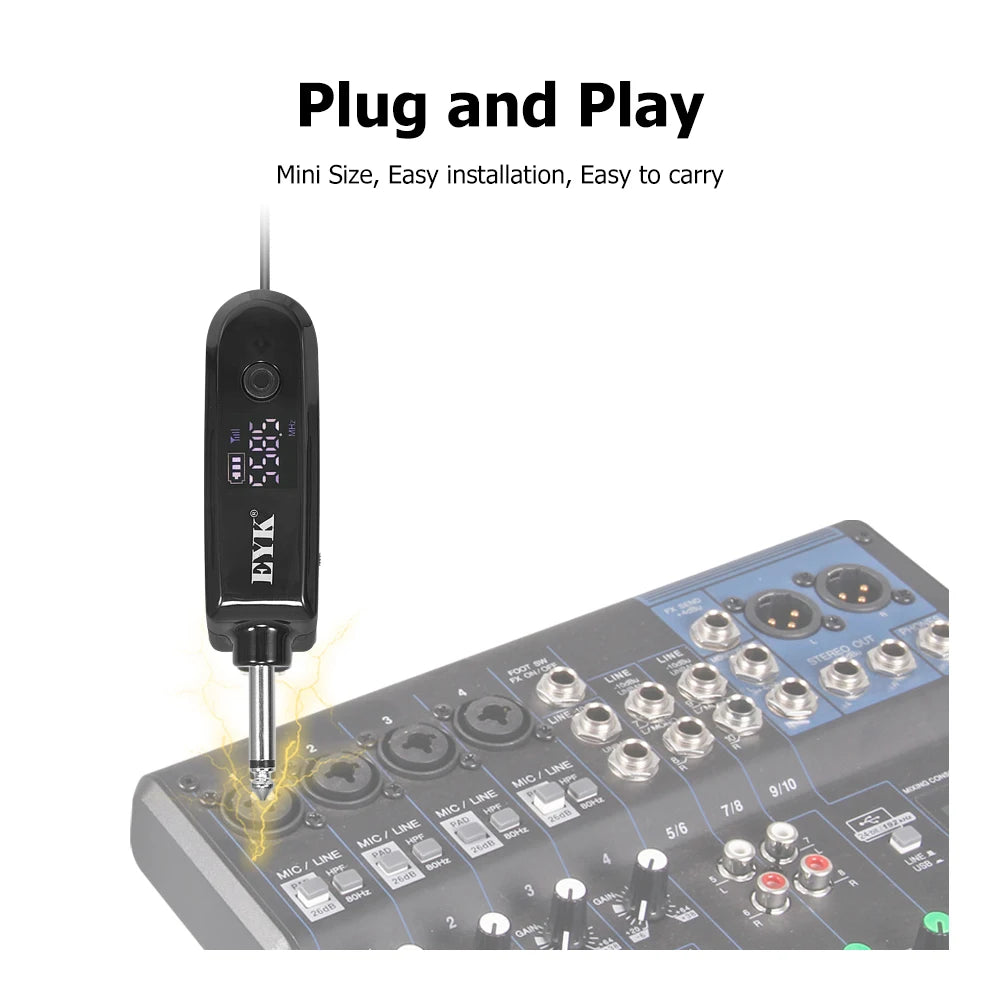

6. Easy to Use : Plug and Play, Plug the mini receiver into the mic socket of any powered speaker, mixer, amplifier, digital recorder or some DLSR cameras for audio output, power on the mini receiver and microphone, it is ready to go, Easy to use.

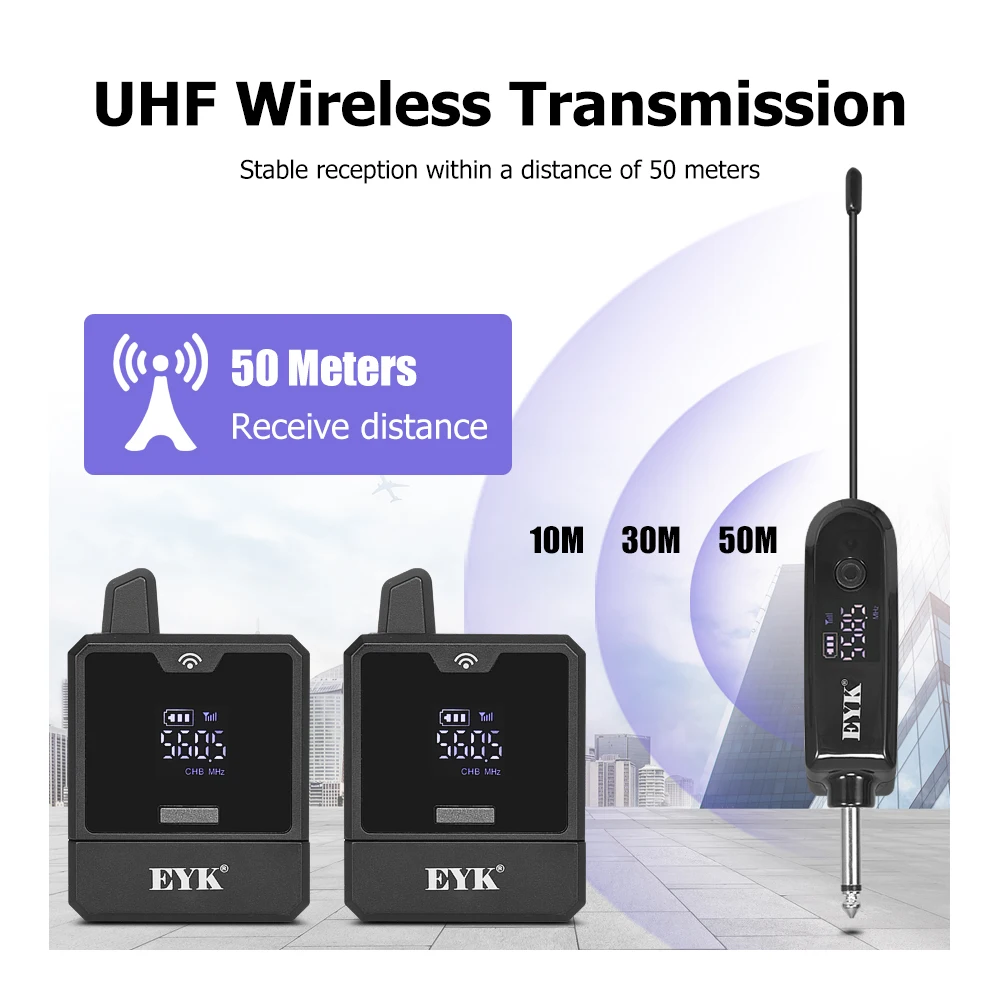

8. Range: up to 195 Feet ( over 50 meters )

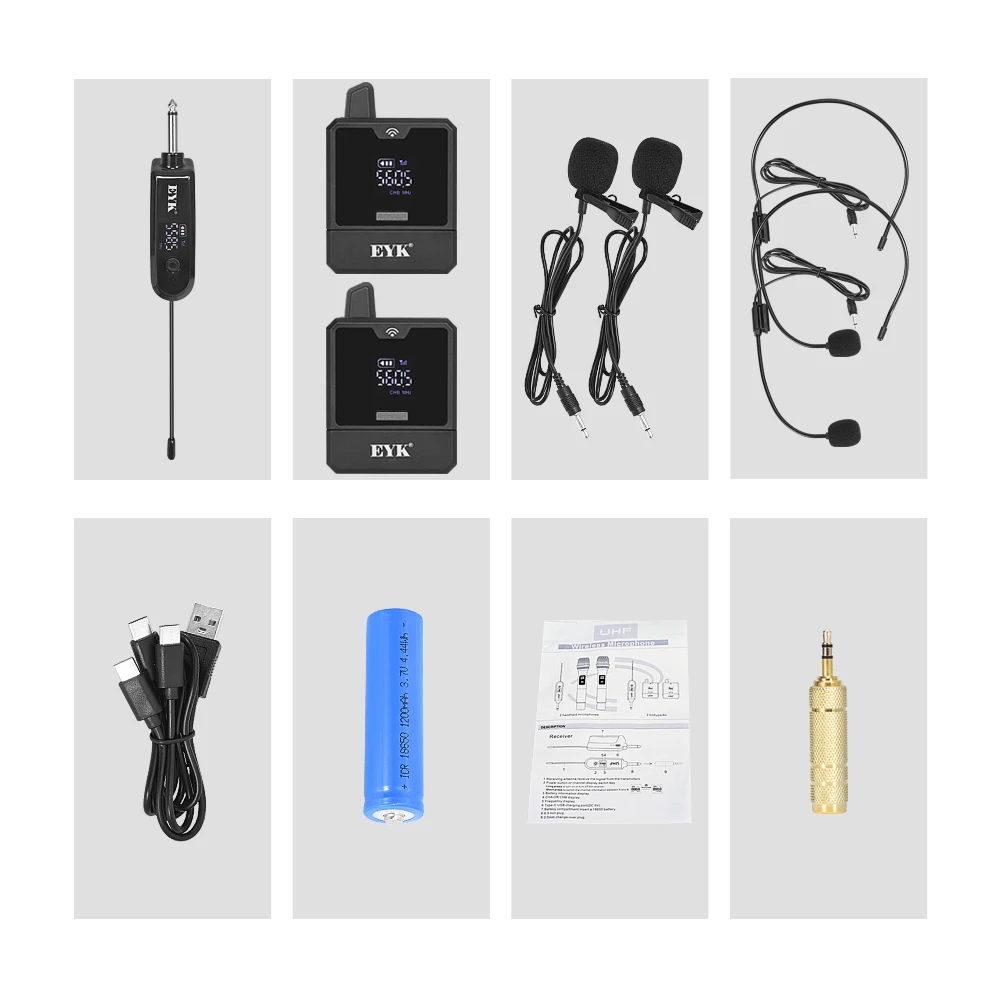

Packing list:

2 x Bodypack
1 x Receiver
1 x Lithium battery
1 x 3.5mm to 1/4" adapter
1 x USB dual charging cable
2 x Headset mic
2 x Lapel mic
1 x User Manual
1 x Packing box

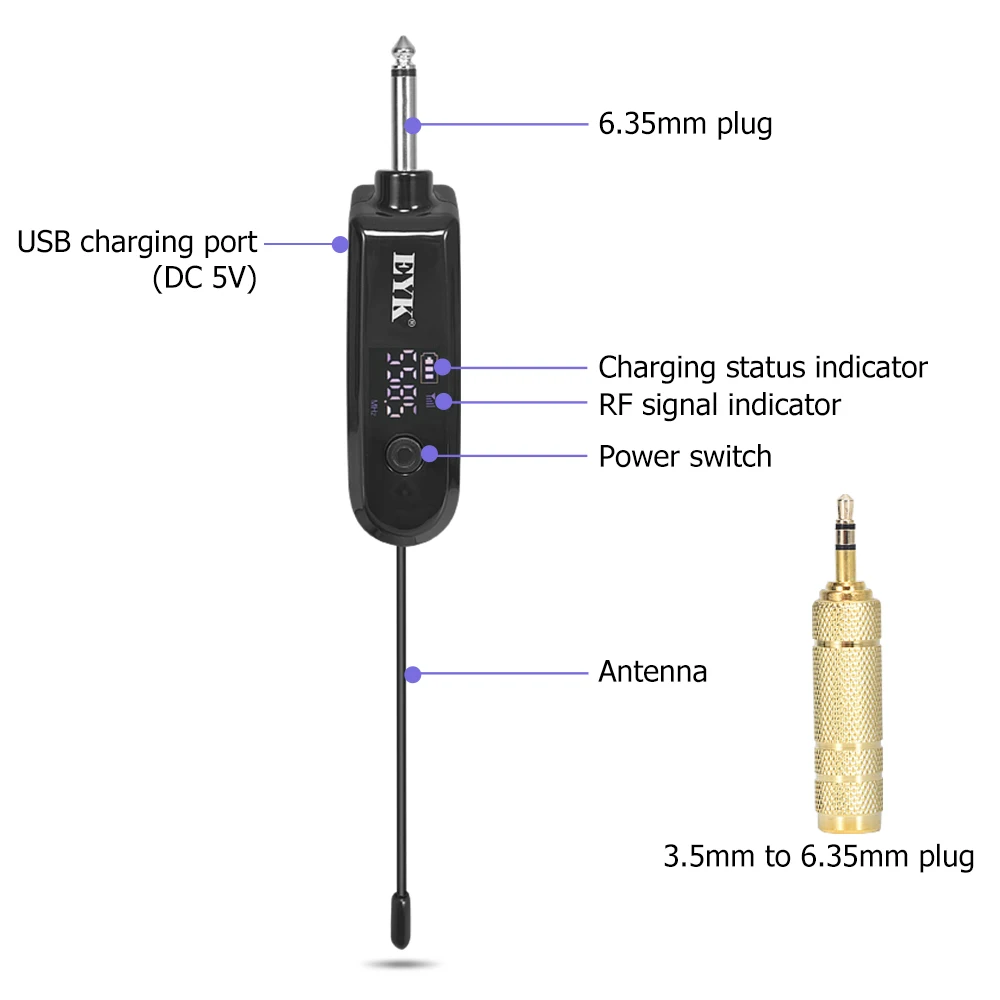

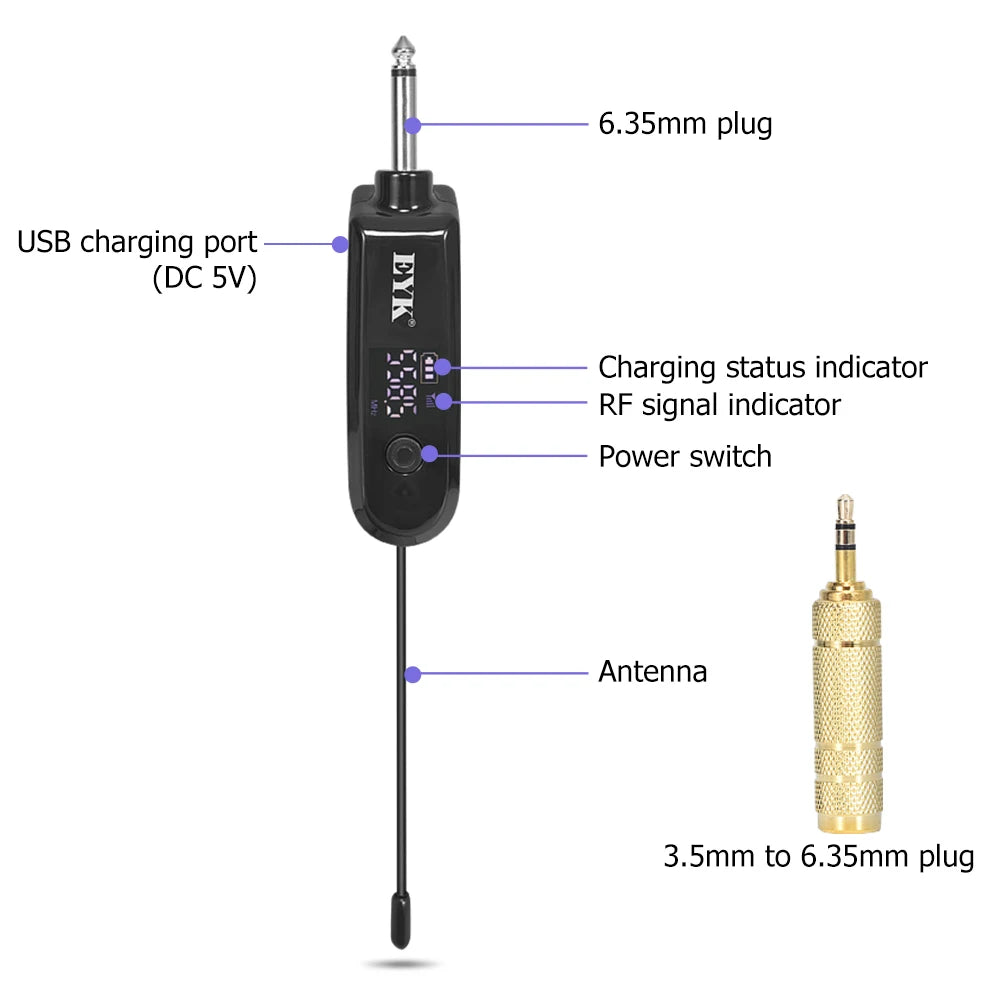

About Receiver

1. 6.35mm plug
2. USB charging port (DC 5V)
3. Charging status indicator
4. RF signal indicator
5. Power switch
6. 3.5mm to 6.35mm plug

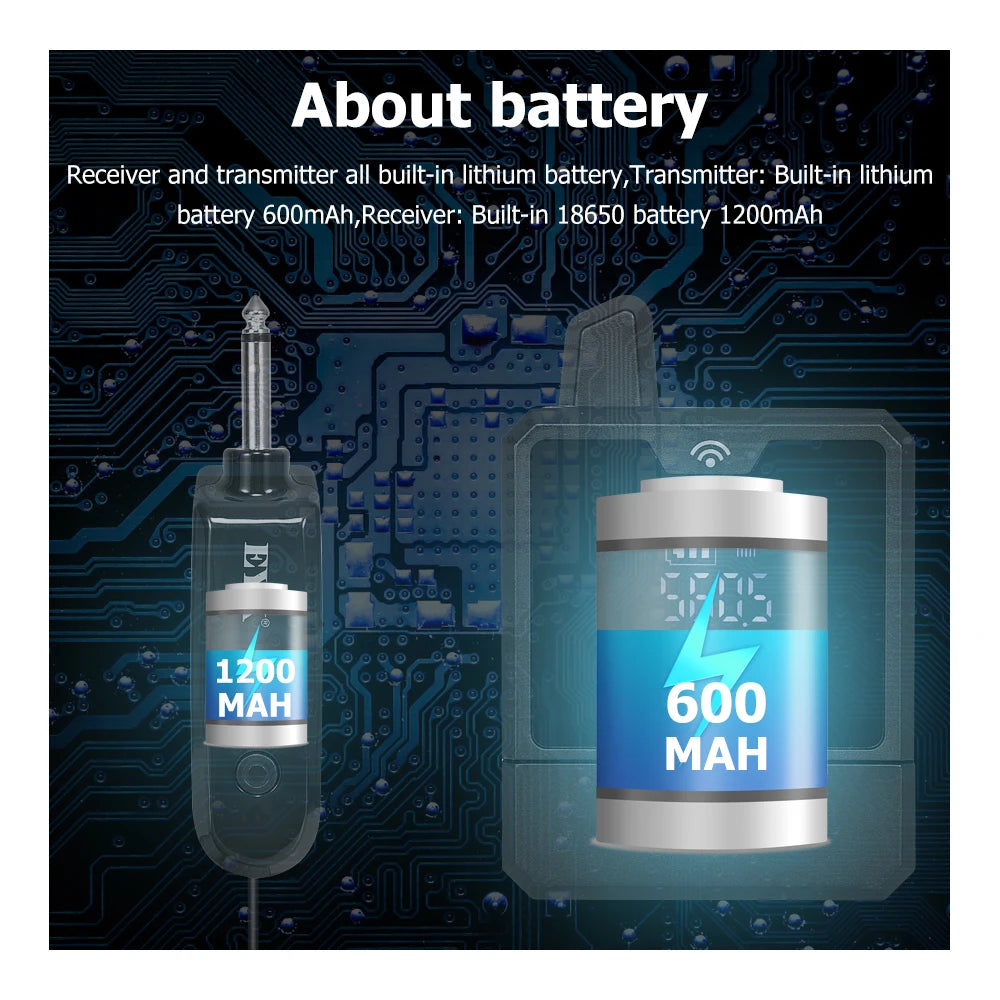

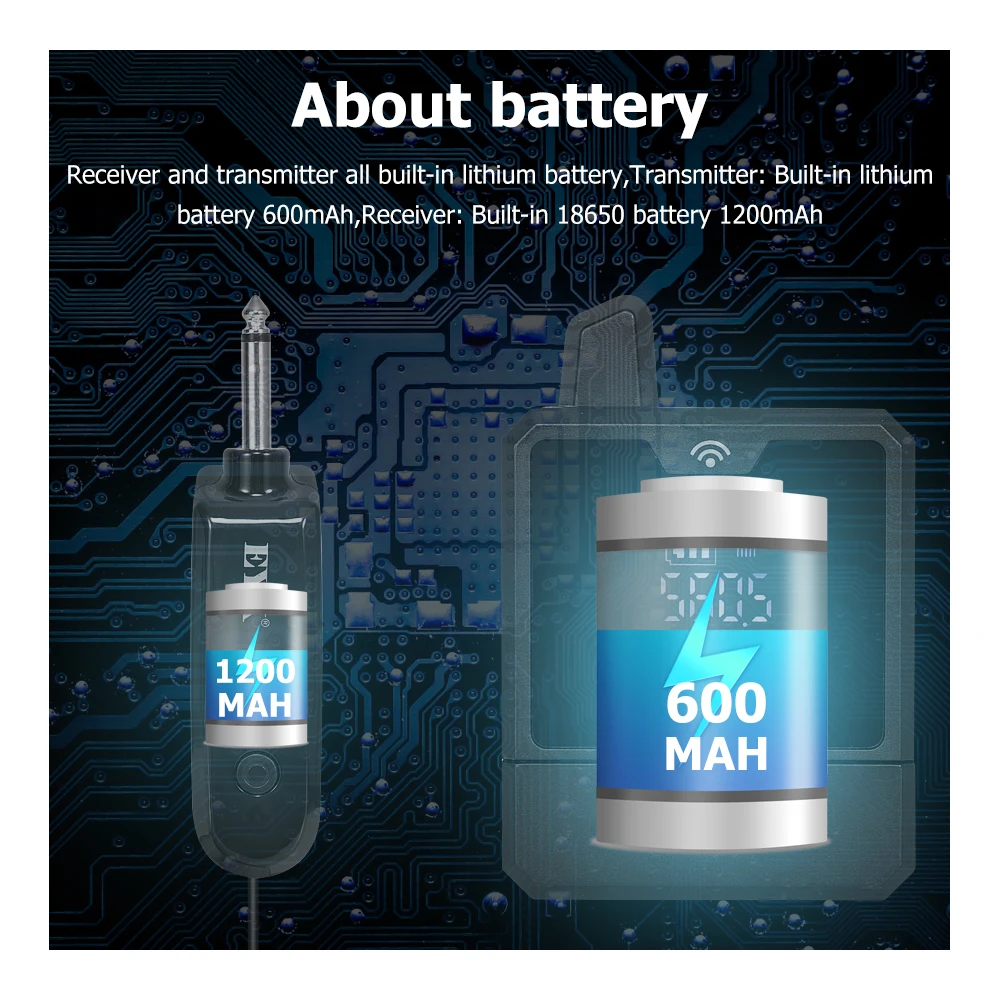

About Battery

Rechargeable receiver with lithium battery（1200mAh）,
Rechargeable Bodypack Transmitter with lithium battery（600mAh）,

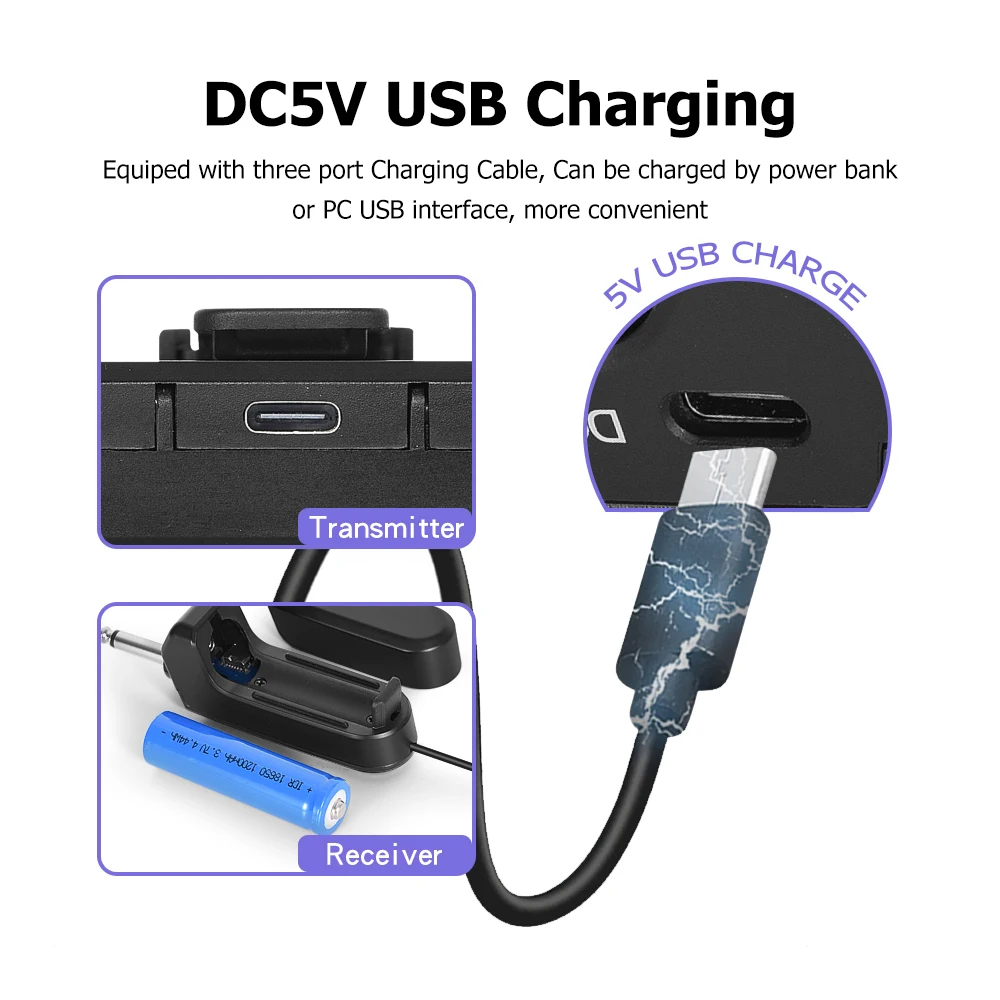

DC5V USB Charging by power bank or PC USB interface, more convenient,
Can be used continuously for about 4 hours.

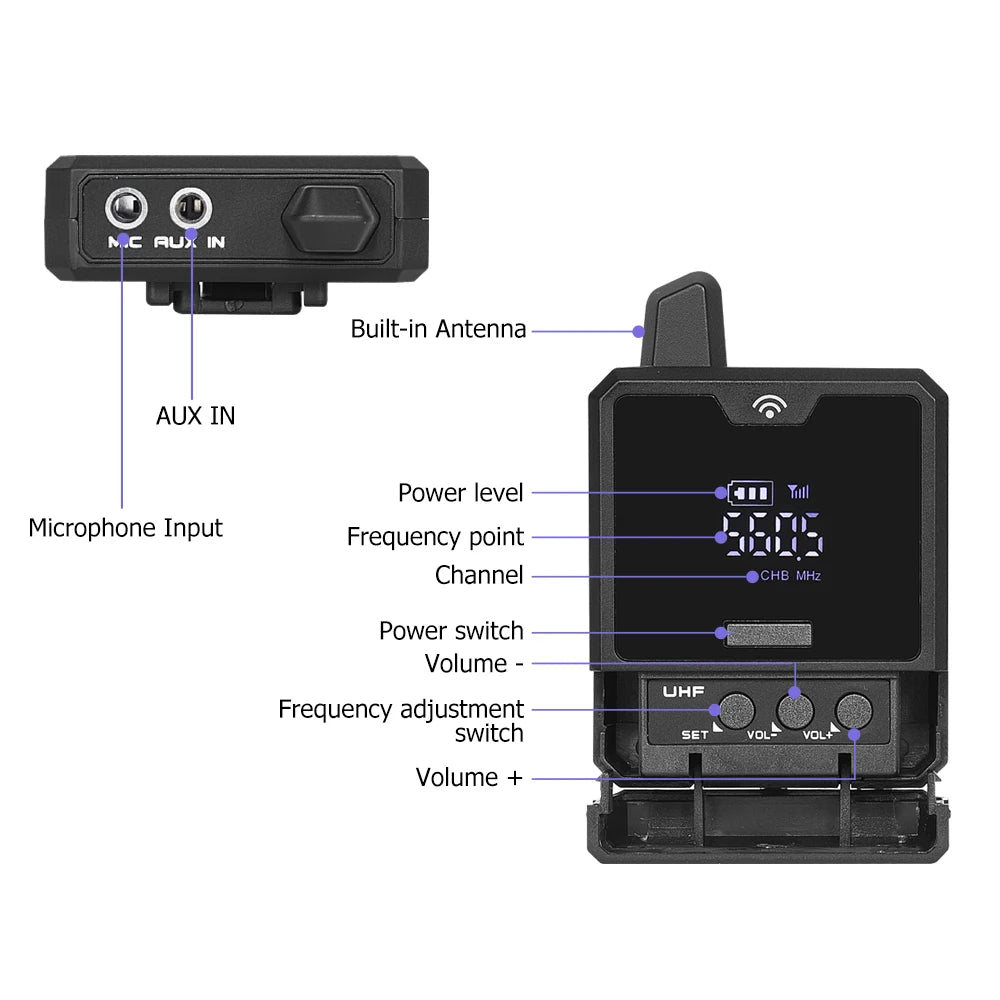

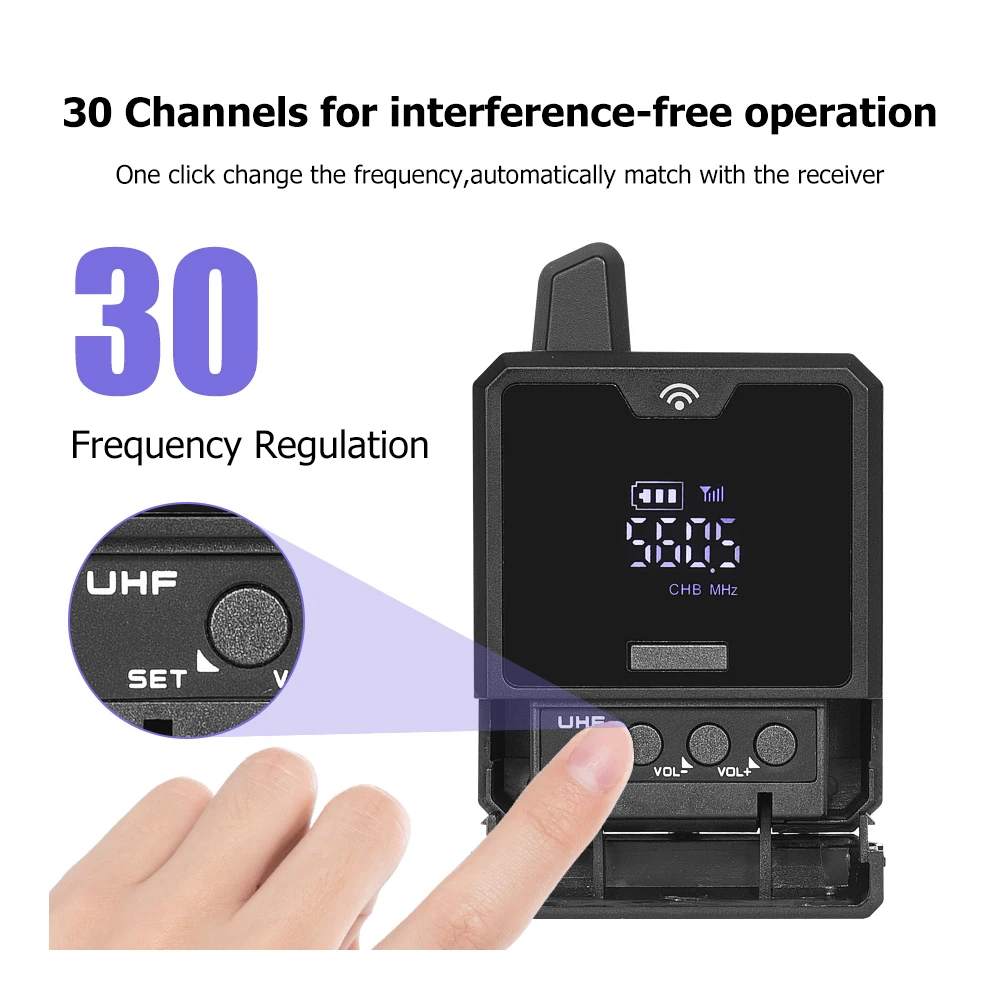

30 Channels for interference-free operation

One click change the frequency, automatically match with the receiver

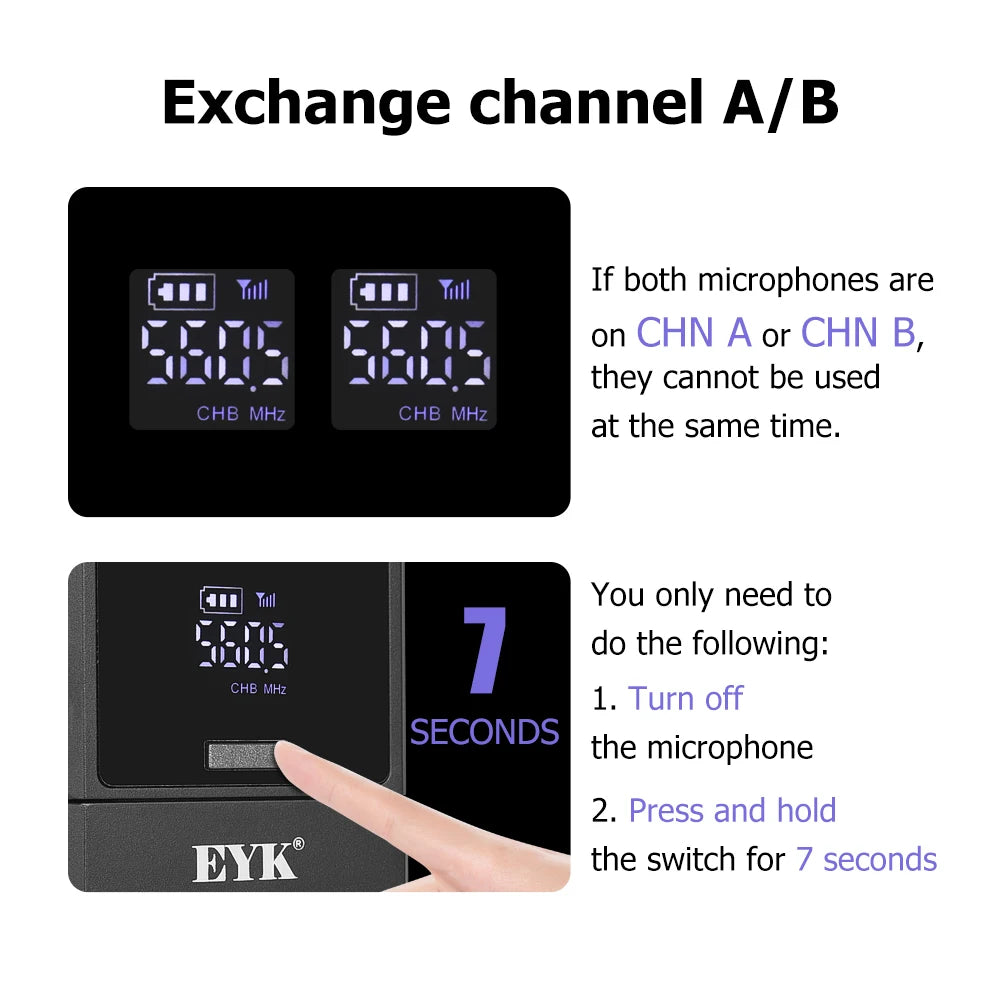

Exchange Channel A/B

If both microphones are on CHN A or CHN B, they cannot be used at the same time. You only need to do the following:

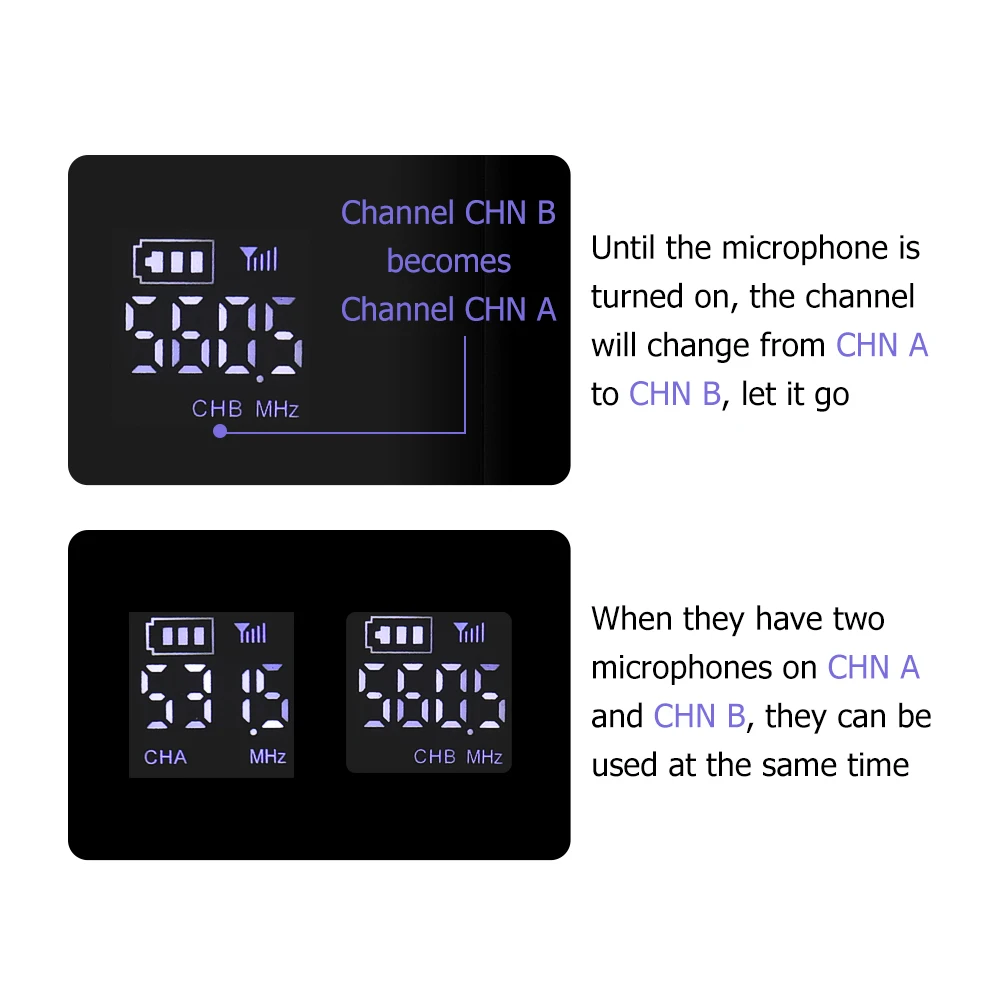

Turn off the microphone, press and hold the microphone switch for 7 seconds, until the microphone is turned on, the channel will change from CHN A to CHN B, let it go.
When they have two microphones on CHN A and CHN B, they can be used at the same time.

Parameter：

Transmitter

1. Frequency Range: 520~580MHz

2. Number of Channel: 30
3. Oscillation mode: DSP chip frequency locking

4. Frequency Stability:±10ppm

5. RF power： 10dBm

6. Frequency Response:40~18000Hz

7. Total Harmonic Distortion: ≤0.5%

8. Power supply: Built-in lithium Battery


Receiver

1. Frequency Range :520~580MHz

2. Number of Channel: 30

3. Oscillation mode: DSP chip frequency locking

4. Frequency Stability: ±10ppm

5. Receiving Sensitivity: -95~-71dBm

6. Frequency Response :40~18000Hz

7. Total Harmonic Distortion :≤0.5%

8. S/N Ratio: ≥90dB

9. Audio output: ≤ 350mv

10. Power supply: 18650 Battery
