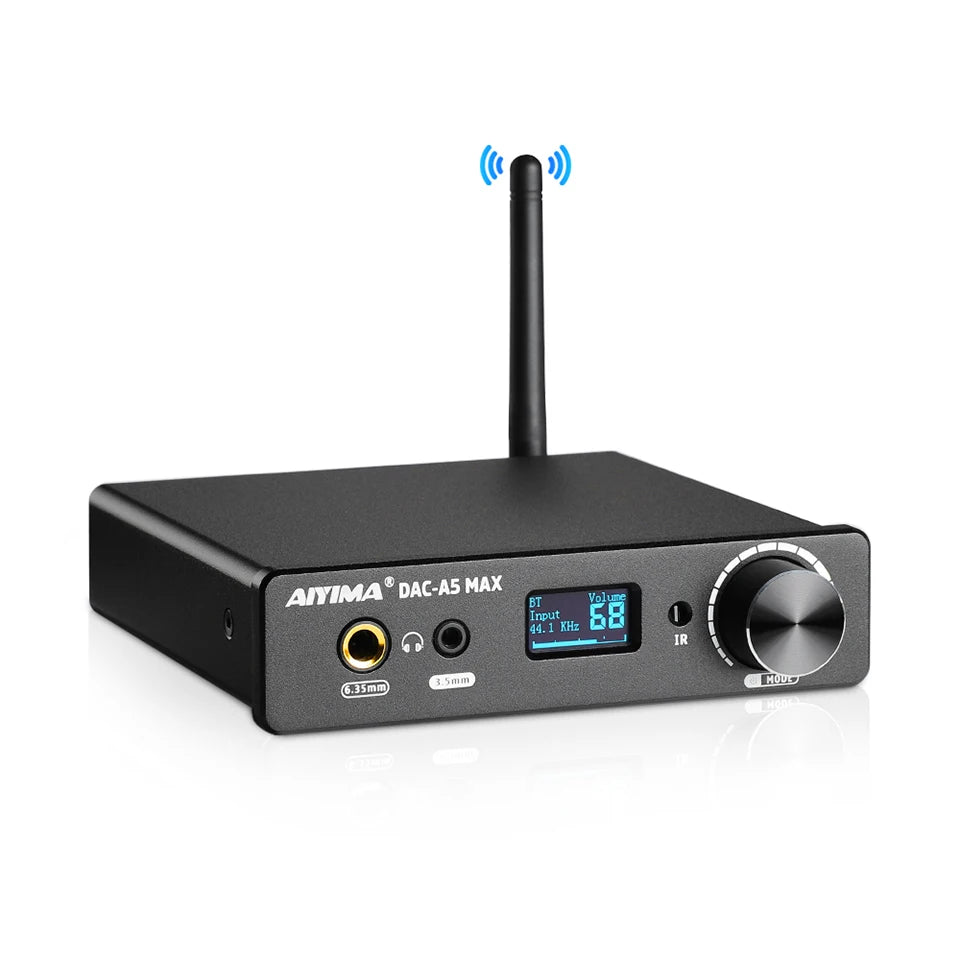

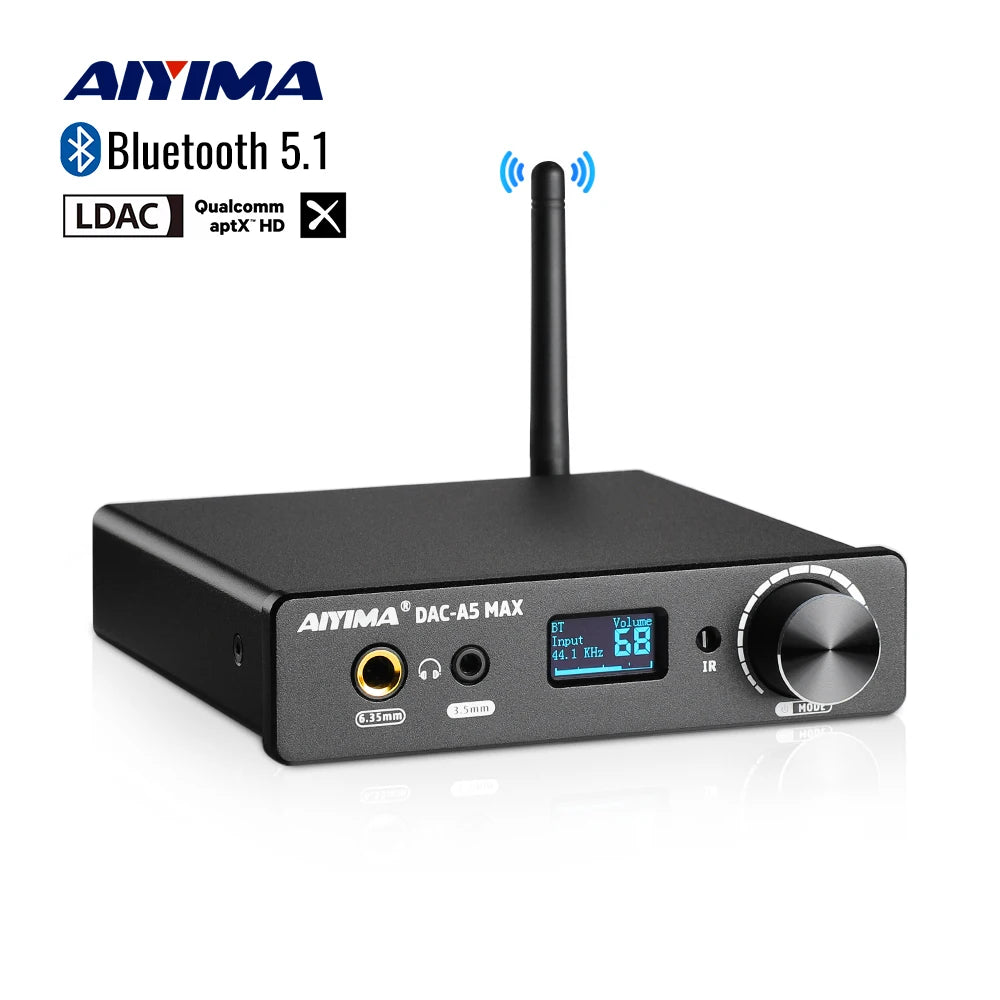

AIYIMA Audio A5 Max Mini DAC Headphone Amp ES9018K2M Decoder Bluetooth 5.1 APTX-LDAC Support DSD256 PCM384 With Remote Control

$159.47
$0.00
$159.47
Color — with US plug
Ships From

    Shipping information

    Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

    Ex: Shipping and return policies, size guides, and other common questions.

    Returns information

    Use collapsible tabs for more detailed information that will help customers make a purchasing decision.

    Ex: Shipping and return policies, size guides, and other common questions.

    More information

    View images

    Product Details

    SPECIFICATIONS

    Bluetooth: Yes

    Body Material: aluminum

    Brand Name: Aiyima

    Built-in Battery: No

    Certification: CE,FCC,RoHS

    Channels: 2 (2.0)

    DAC Model: ESS9018K2M

    DSD (Direct Stream Digital): Yes

    Dimensions (WxHxD): 125 * 133 * 33mm

    Feature 1: Headphone Amplifier

    Feature 2: Audio interface

    Hign-concerned Chemical: None

    Input Type: USB,COAXIAL,OPTICAL,Bluetooth

    Model Number: A5 Max

    Operational Amplifier Chips Model: TPA6120

    Origin: Mainland China

    Output Type: LINE OUT (AUDIO OUT)

    Output Voltage: 500mW/1000mW 32 load

    PCM: Yes

    Package: Yes

    Recommended Headphone Maximum Impedance: 501 - 600 Ohm

    Type: Professional Amplifier

    WIFI: No



    Feature

    Dual Headphone Output; upgrade the fiber base, optimize the circuit board design, redefine quality and sound.

    Mac/PC plug-n-play, no special software is needed, RCA and dual headphones outputs.

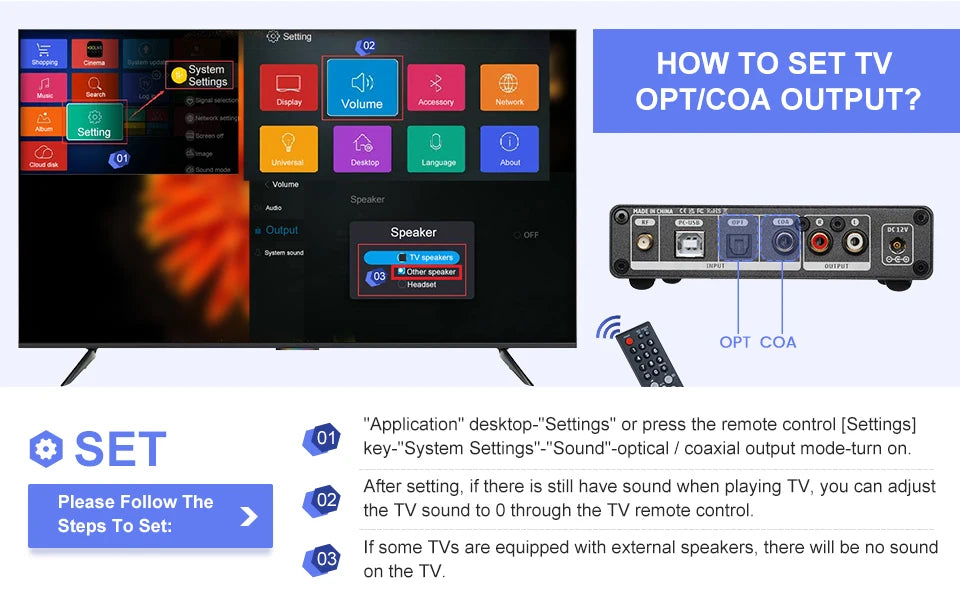

    USB and optical coaxial S/PDIF inputs, can choose the input mode. With the volume control knob that can adjust the headphones as well as the RCA output. Note: Dolby signal input is not supported！

    Hi-Fi headphone amp chips TPA6120,; with headphones protect circuit for any 16~600 Ohm headphones.

    Stream bit-perfect 24bit/192Hkz HD with low jitter, built-in Cirrus SA9137 +TPA6120 + ESS9018K2M DAC chips, as desktop DAC, stereo headphone amp, and preamp.

    Parameters:


    DAC DECODER- DAC A5 MAX

    Chipset:SA9137+ES9018K2M+TPA6120+TPA5430 +NE5532+AT32F421K8T7

    Bluetooth Chip: QCC5125

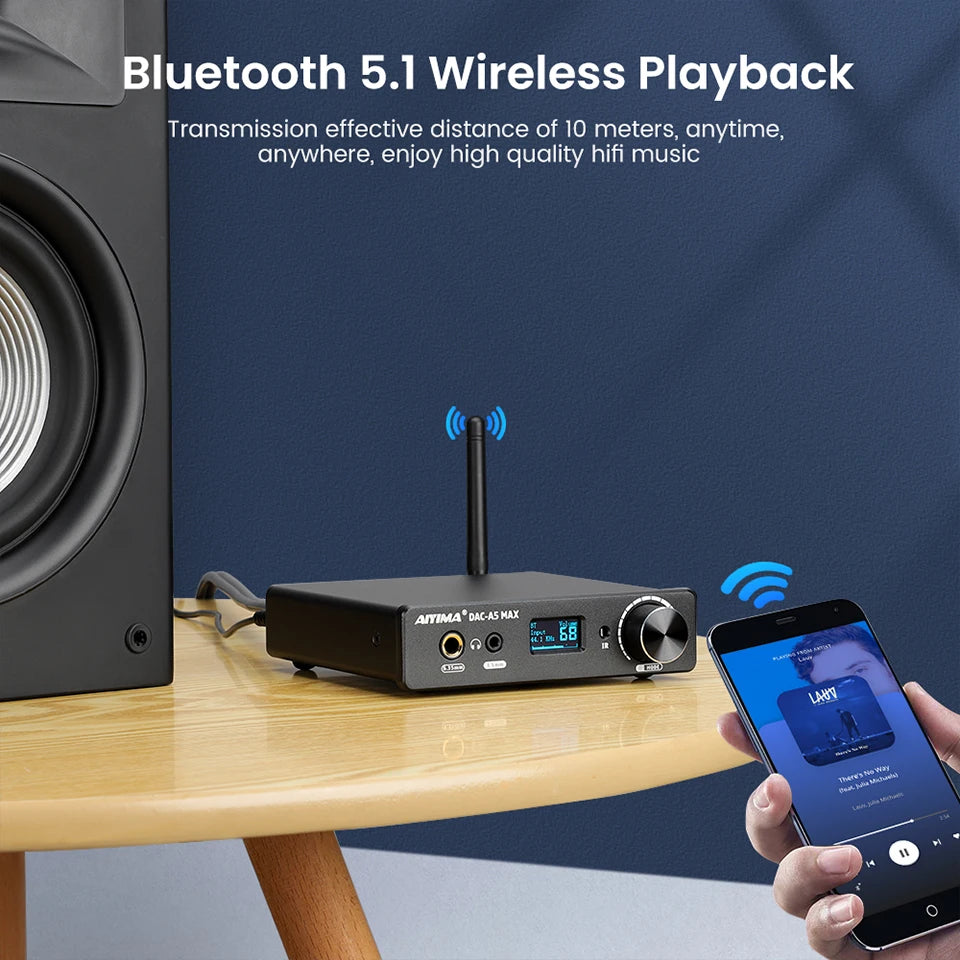

    Bluetooth 5.1 support: SBC, AAC, APTX, aptx-ll, aptx-hd, ldac

    Operational amplifier chip: NE5532

    Replaceable chips: dual Op amp such as OPA2134 and 0PA1656

    PC-USB sampling rate: up to PCM 384K, DSD256 supported

    Distortion: 0.005%

    Signal-to-noise ratio: > 118dB

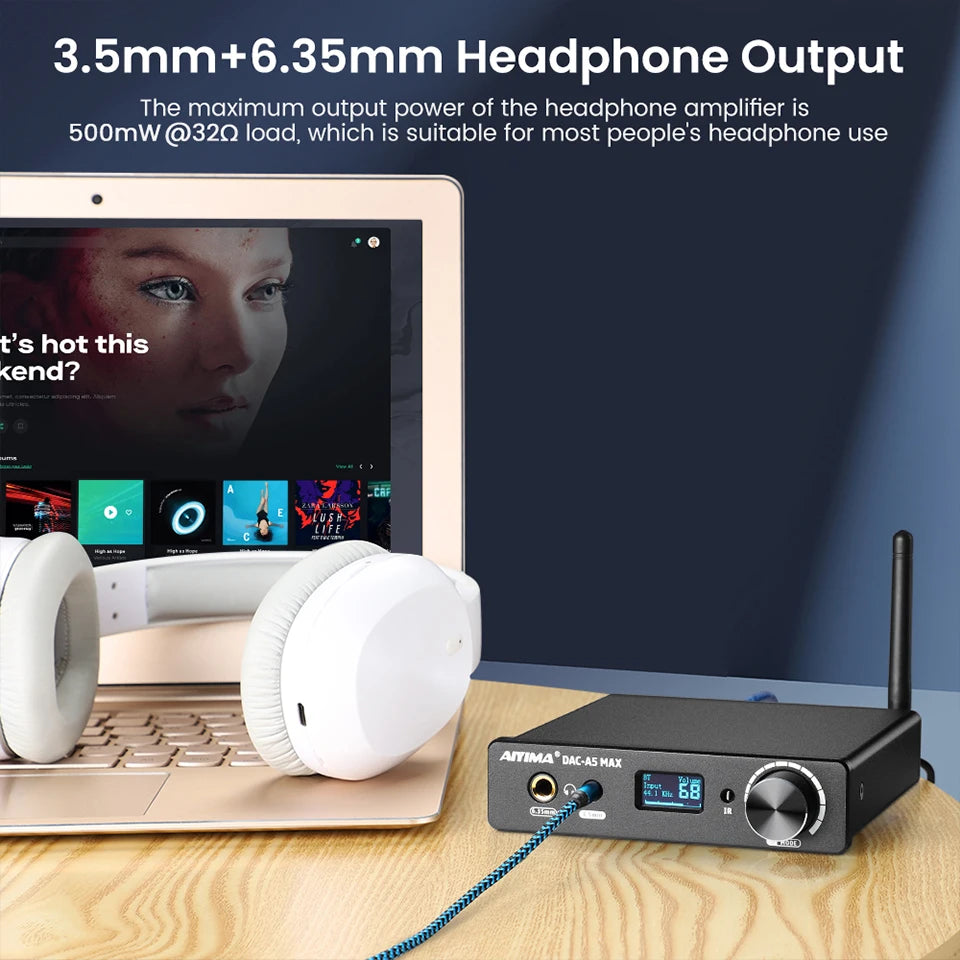

    Headphone amplifier output power: 500mW@32 Q

    Headphone amplifier signal to noise ratio: > 118dB

    Headphone amplifier impedance: 16~600 ohm

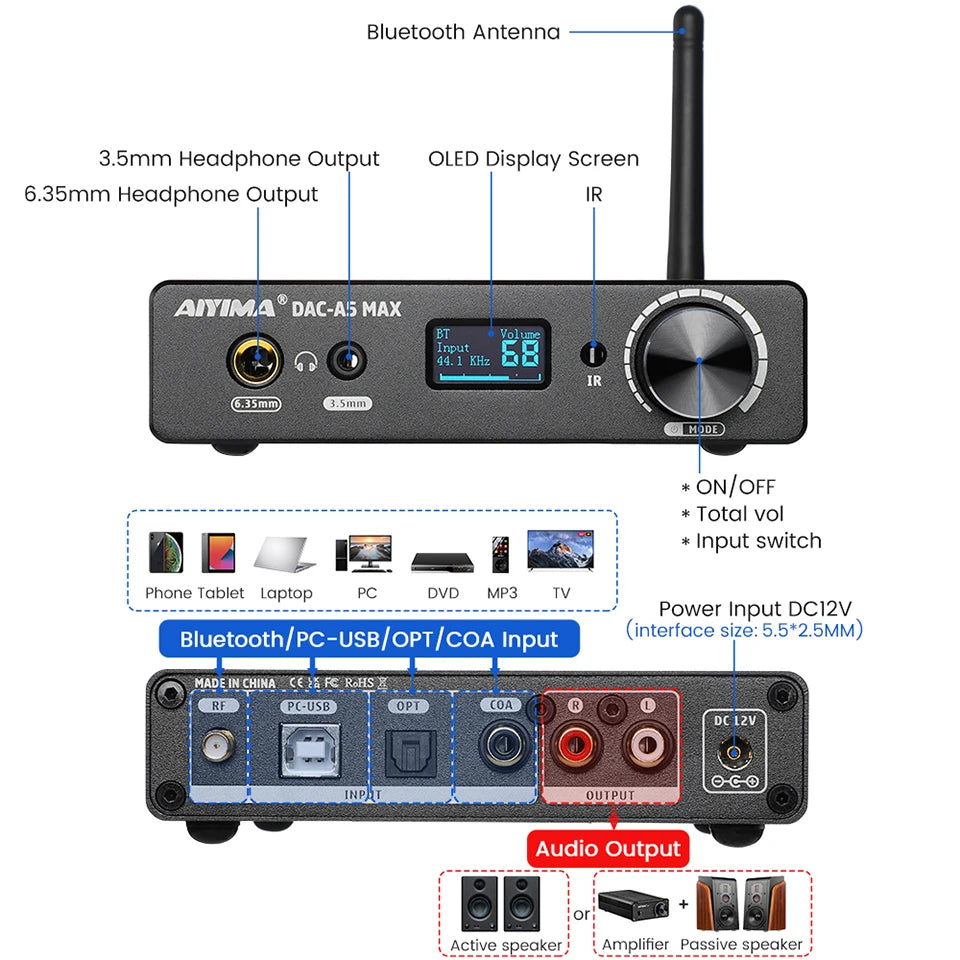

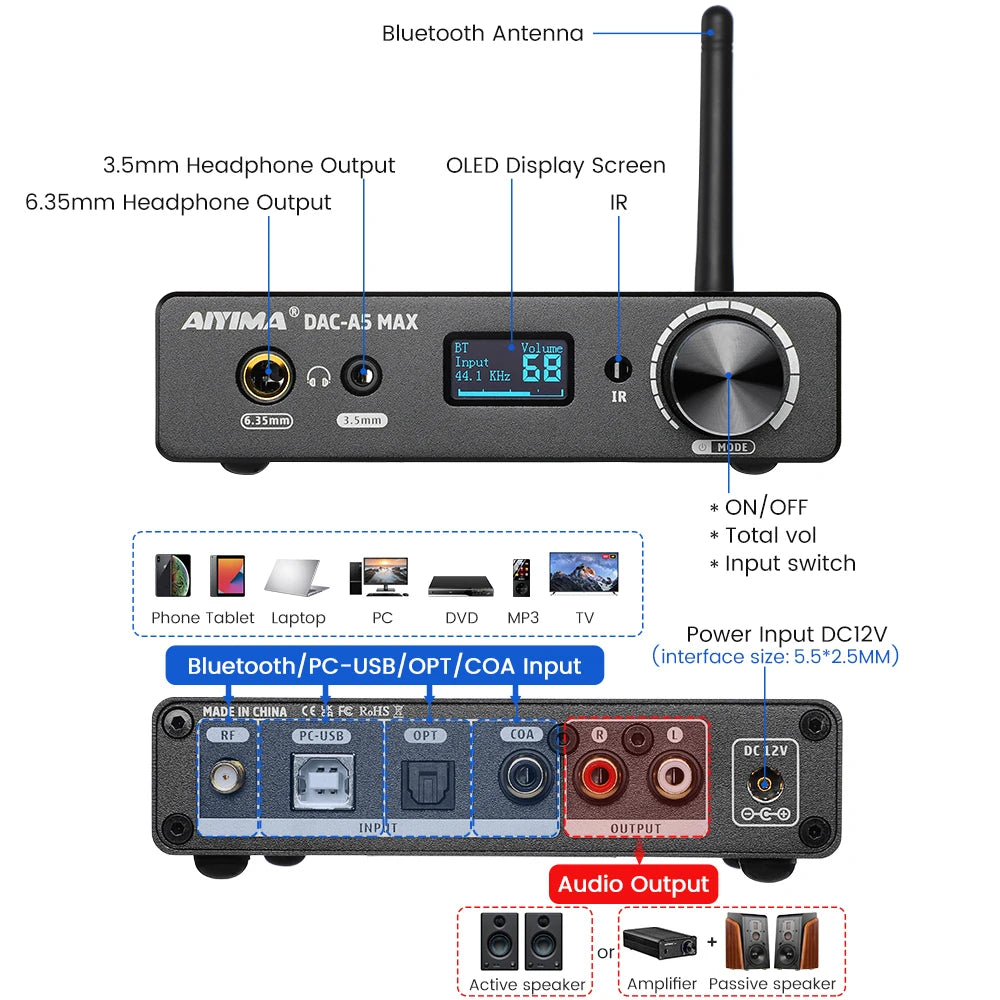

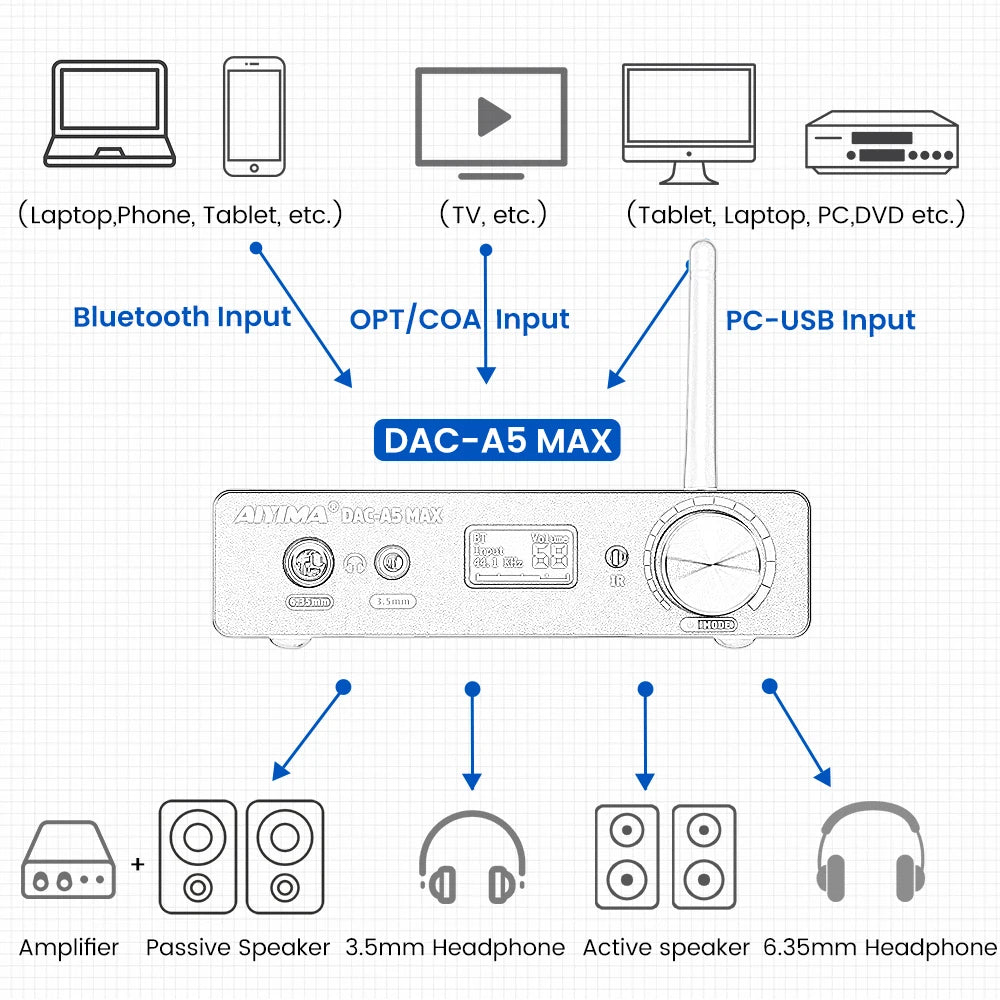

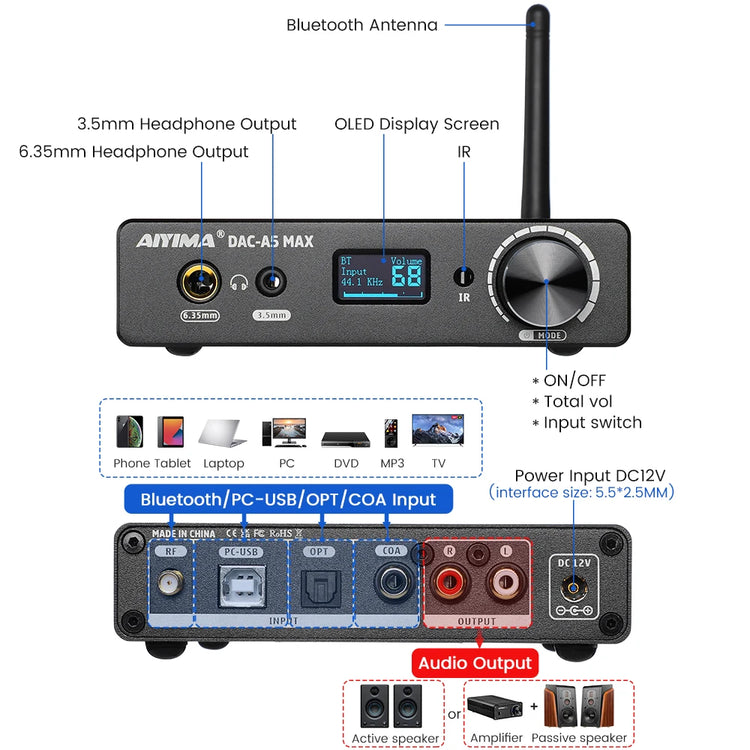

    Input mode: optical fiber, coaxial, Bluetooth, PC-USB, MIC input Output mode: line output, 3.5+6.35 earphone output

    Working power supply: DC12V

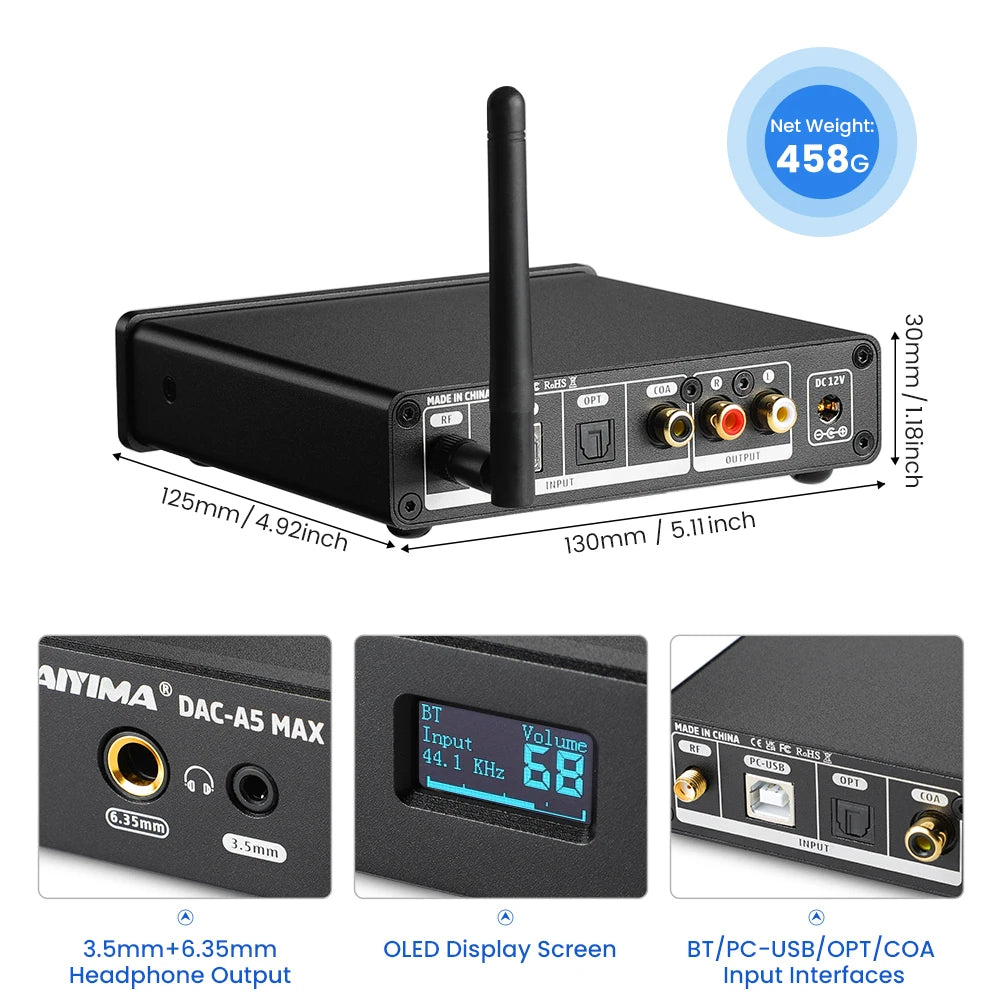

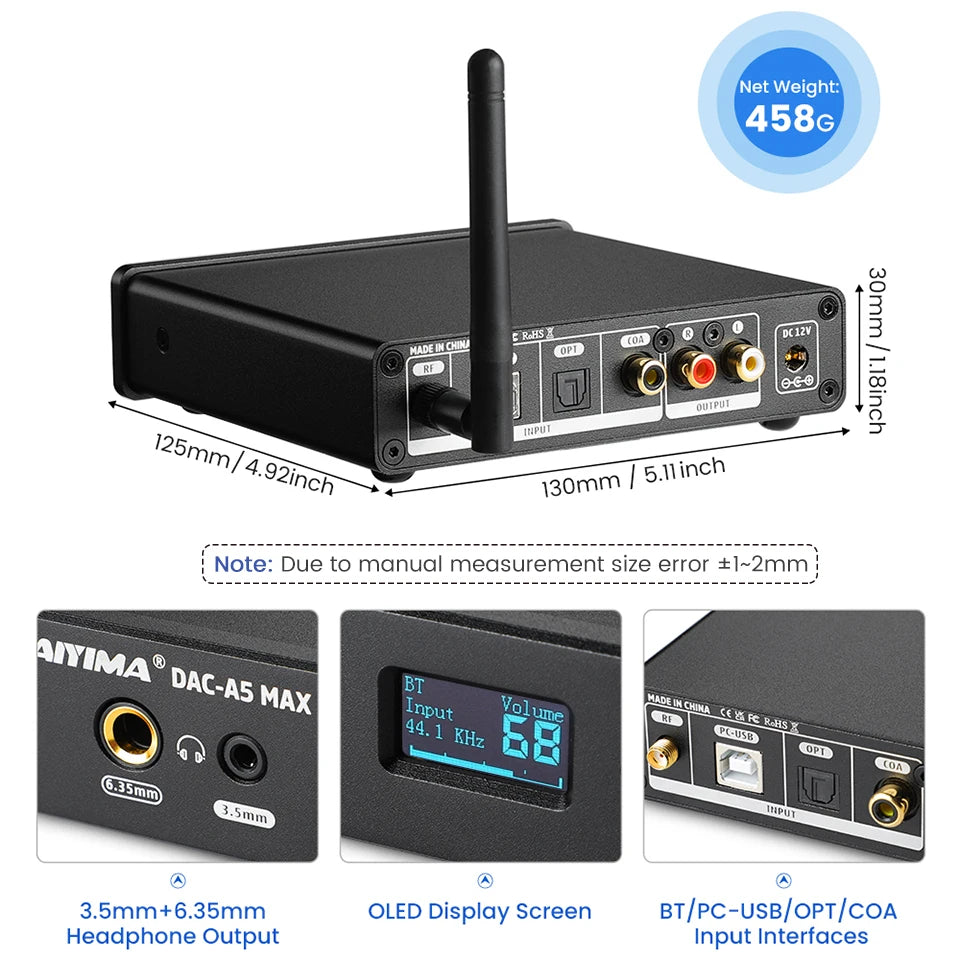

    Dimensions: 125 * 133 * 33MM(L* W*H))

    Net weight of product: 450g(without assories and box)

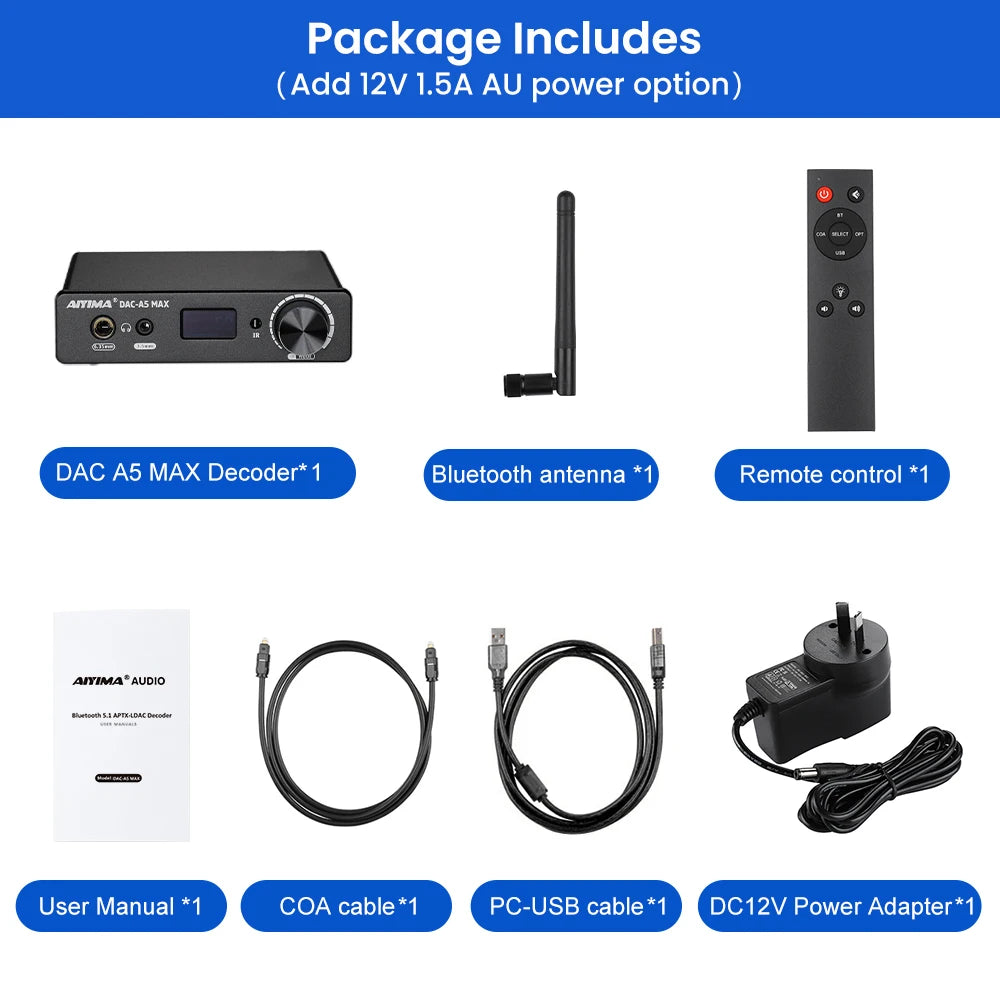

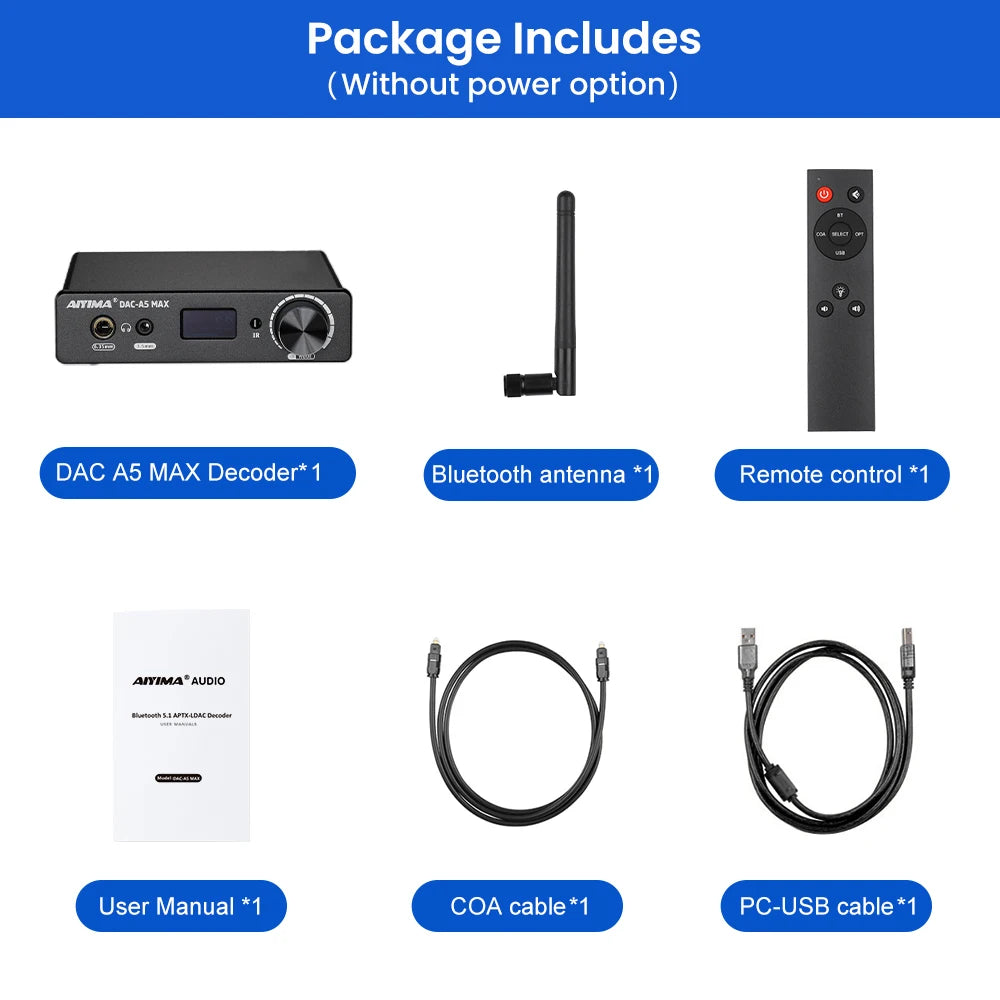

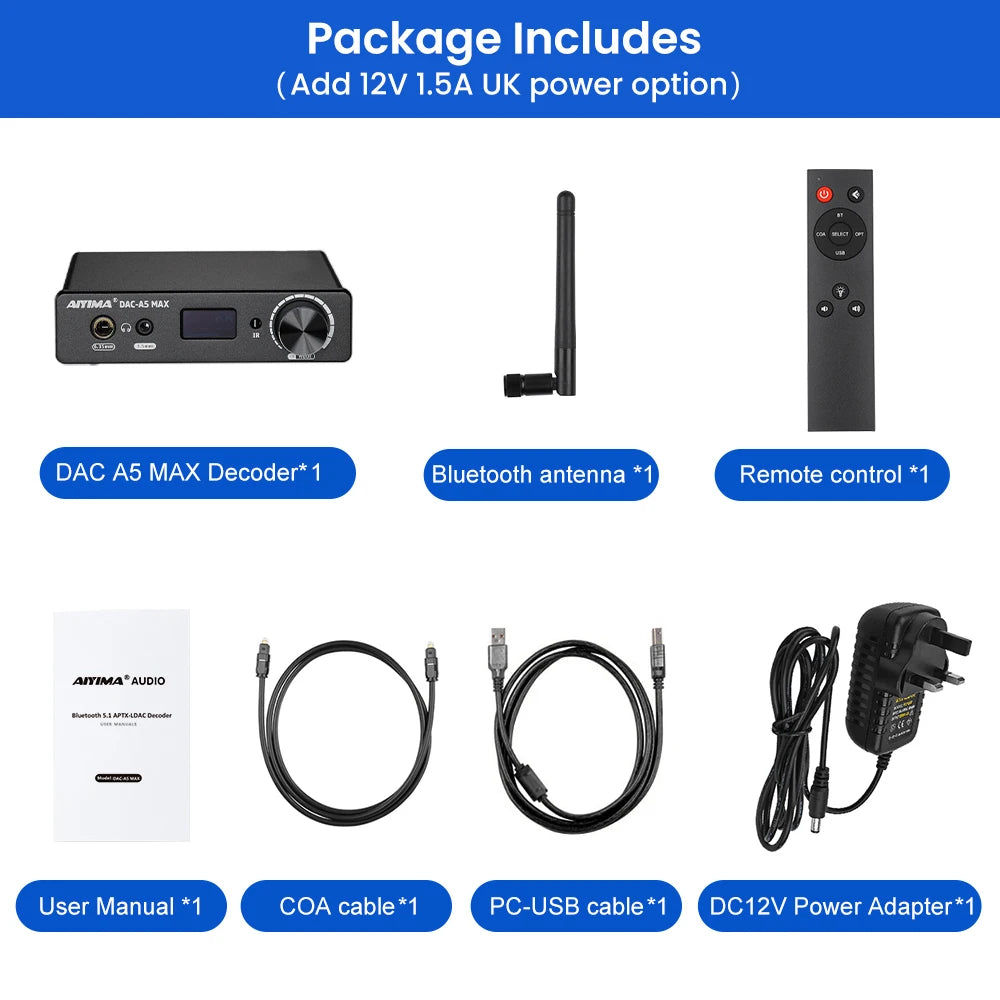

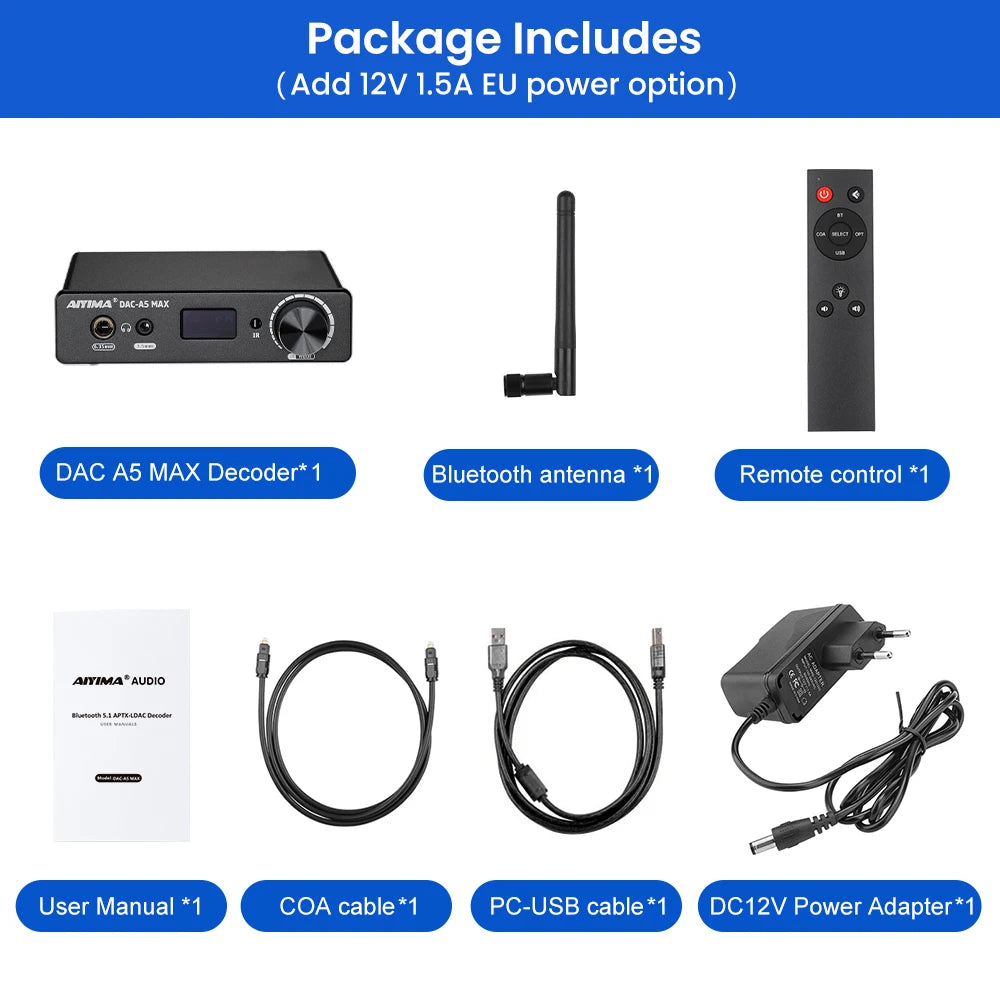

    Package included

    1* DAC A5 Max Headphone Amplifier

    1*PC-USB cable

    1*COA cable

    1* Manual

    1* 12V Power Adapter (Optional)
